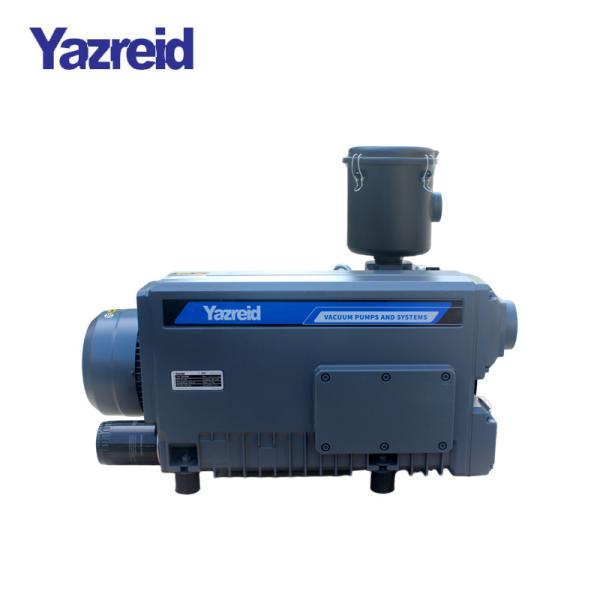

6L Rotary Vane Vacuum Pump Lab Equipment Direct Drive

Name: 6L Rotary Vane Vacuum Pump Lab Equipment Direct Drive
Brand: Yazreid
Price: 1380 USD

Brand Name : Yazreid

Model Number : YD0200

Place of Origin : Dongguan

MOQ : 1

Price : USD1380/Set

Payment Terms : T/T

Supply Ability : 500 Sets Per Month

Delivery Time : 1-30 days

Packaging Details : Carton

Application : Laboratory/Industrial Use

Dimensions : 911mm x 490mm x 417mm

Flow Rate : 200m³/H

Frequency : 50Hz/60Hz

Inlet/Outlet Port Size : G2”

Model : YD0200

Oil Capacity : 6L

Power Source : Electric

Type : Rotary Vane

Ultimate Vacuum : 0.5mbar

Voltage : 220V/380V

Weight : 147kg

Contact Now

Product Description:

The rotary vane vacuum pump is a positive displacement pump that uses rotary vanes to continuously operate in the pump chamber to suck in and compress gas, and finally discharge it through the exhaust port. The pump is mainly composed of a stator, a rotor, a rotor, etc. The rotor is eccentrically loaded into the stator cavity. There are two rotary vanes in the rotor slot, and the rotary vane spring is placed between the two rotary vanes. The inlet and exhaust ports on the stator are separated into two parts by the rotor and the rotor vane.

When the rotor rotates in the stator cavity, the end of the rotary vane slides close to the inner wall of the pump cavity under the combined action of spring tension and its own centrifugal force, periodically expanding the volume of the cavity on the air inlet side to suck in gas. Gradually reduce the volume of the exhaust port, compress the inhaled gas, and then discharge it from the exhaust port to achieve the purpose of air extraction.

Technical Parameters:

Parameter	Unit	YD0200
Rated Flow	50Hz	200m³/H
Ultimate Pressure	mbar	0.5
Voltage	50Hz	380V
Motor Power	kW	5.5
Current	50Hz	11.89A
Rotate Speed	min	1450
Noise	dB(A)	72
Protection Grade		IP55
Insulation Grade		F
Cooling type		Air
Caliber		G2”
Oil tank capacity	L	6
Weight	Kg	147

Application:

Vacuum package machine

Glue dispenser

Chip mounter

SMT machine

Vacuum forming machine

Vacuum defoamation

Vacuum drying

Vacuum precooling machine

Dimensions:

6L Rotary Vane Vacuum Pump Lab Equipment Direct Drive
